How Do I Remove and Replace The Fill Valve from a Toilet Tank?

G Admin
Updated
This article will explain how to remove and replace a fill valve from a toilet tank.

Please note that the images are for reference only. The product shown in this article may differ from yours, but the information below is still relevant.

To remove and replace a flush valve, you must
  1. Close the shut-off valve.
  2. Drain out water in the toilet tank.
  3. Remove the existing fill valve.
  4. Setting the new fill valve height and float location based on dimension is recommended at the end of the article.
  5. Replace the new fill valve.
  6. Reinstall the refill restrictor and the refill tube.
  7. Refill the tank and test for leaks and for flushing function.
Please note: Before doing any work on your toilet, please shut off the water supply for your toilet.

Once the water is turned off, you are ready to begin.

Step 1 – Close the shut-out valve and drain out the water in the tank

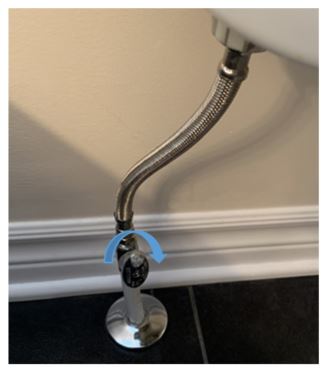

  • Shut the water off by turning the shut-off valve clockwise
Step 2 – Drain out water in the toilet tank
  • Drain as much water out as possible by holding the tank lever down until water within the toilet tank is flushed out completely. Use a sponge or a cloth to drain out the remaining water in the tank.
Step 3 – Remove the existing fill valve

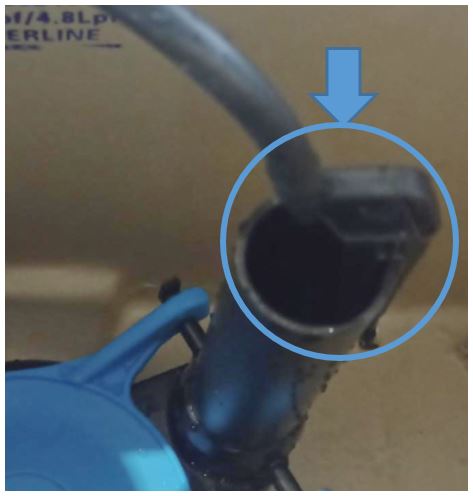

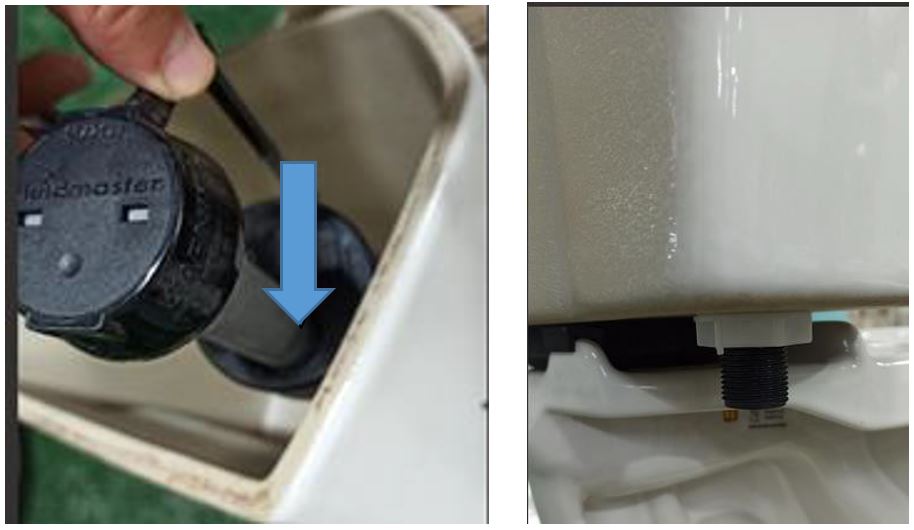

  • Disconnect the refill tube from the flush valve overflow tube

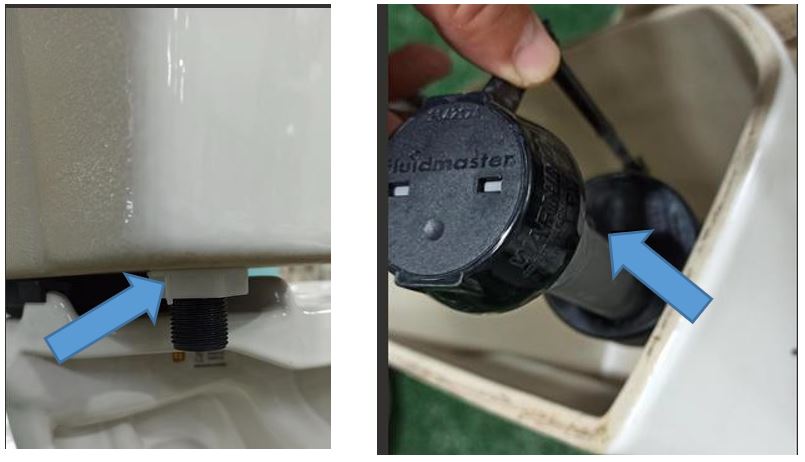

  • Loosen and remove the coupling nut.
  • Loosen the locking nut to allow the fill valve to be removed.
Step 4 – Setting the new fill valve height and float location

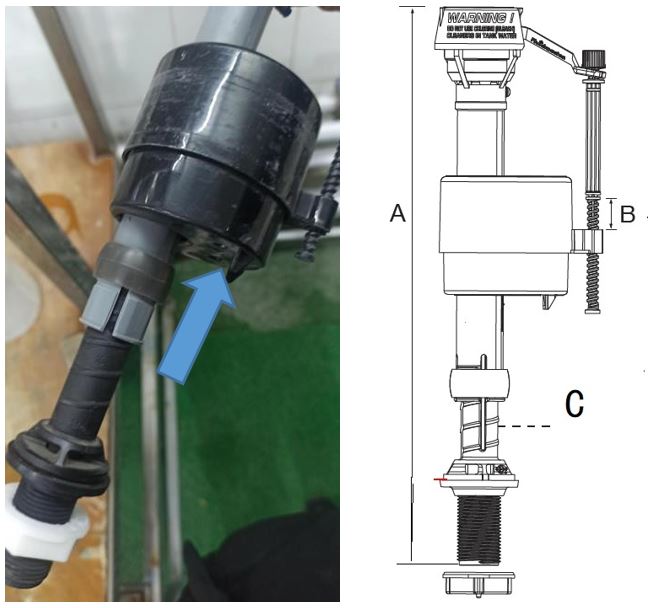

  • Loosen the lock ring to adjust the Total height of the fill valve(A) based on the dimension recommended at the end of the article. Then lock the nut.
  • Adjust the float location to meet with recommended dimension B
Step 5 – Replace the existing fill valve
  • Tighten the locking nut to make sure the fill valve seals well.
    Recommended torque range is 5-8ft.Ibs（60-96in-Ibs）
  • Reinstall the coupling nut.
Step 6 – Reinstall the refill restrictor and refill tube

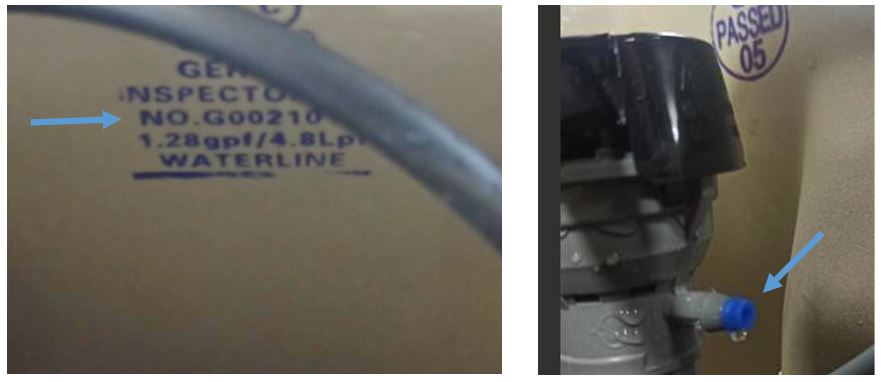

  • Reinstall the corresponding colored refill restrictor based on the tank model number marked inside your toilet tank. Refer to the corresponding model number in the reference table at the end of the article.

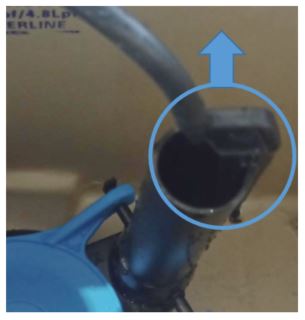

  • Reattach the refill tube onto the flush valve overflow tube. Make sure the refill tube adaptor is attached directly into the overflow tube. Flow from the refill tube must be positioned directly into the overflow tube.
Step 7 – Refill the tank and test for leaks and for flushing function

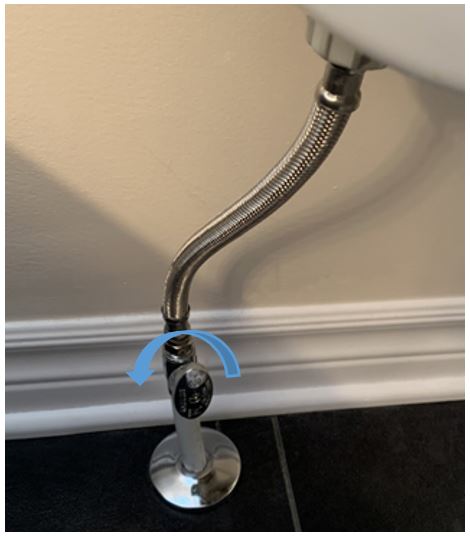

  • Reopen water by turning the shut-off valve counter-clockwise to refill the tank.

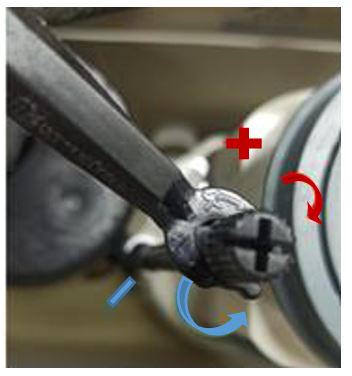

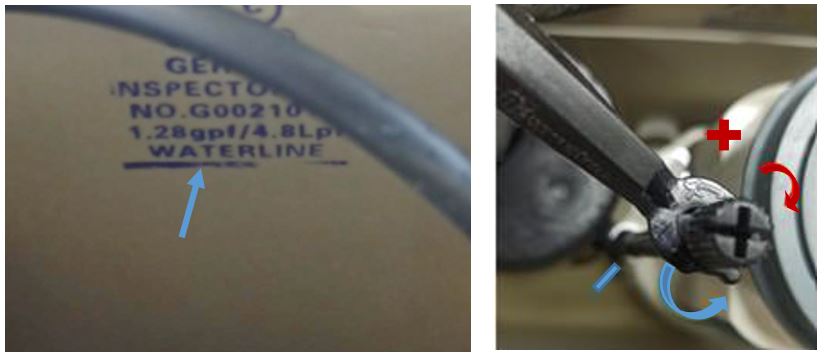

  • When the tank is refilled, verify if the water is filled to the level at the marked water line at the back wall of the tank. Adjust water level if needed by turning the water level adjustment on the fill valve to move the float cup up or down to increase or reduce the water level in tank.

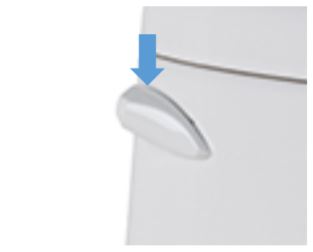

  • Press the tank lever down to activate the full flushing cycle. Verify if toilet flush and refill without issue and the flapper seals well when the flushing cycle completed.



Reference Chart

Gerber Tank Model # Collection
Restrictor Color
（FM）
Fill Valve
Total Height
A （inch）
Float Position
B （inch）
     Gerber Tank Model # Collection
Restrictor Color
（FM）
Fill Valve
Total Height
A （inch）
Float Position
B （inch）
G0028990 Maxwell VC Blue 11 0.9     GDF28591 Viper None 11 0.80
G002899009 Maxwell VC Blue 11 0.9     GHE28570 Viper Yellow 12 0.90
G002899025 Maxwell VC Blue 11 0.9     GHE2857009 Viper Yellow 12 0.90
G002899097 Maxwell VC Blue 11 0.9     GHE2857020 Viper Yellow 12 0.90
G0028992 Maxwell VC Nature 11 0.3     GHE2857021 Viper Yellow 12 0.90
G0028994 Maxwell VC Nature 11 0.8     GHE2857023 Viper Yellow 12 0.90
G0028995 Maxwell VC Nature 11 0.7     GHE2857025 Viper Yellow 12 0.90
GMX28990 Maxwell VC Green 11 1.4     GHE2857029 Viper Yellow 12 0.90
GMX2899009 Maxwell VC Green 11 1.4     GHE2857097 Viper Yellow 12 0.90
GMX2899025 Maxwell VC Green 11 1.4     GHE28590 Viper Blue 11 1.10
GMX2899097 Maxwell VC Green 11 1.4     GHE2859009 Viper Blue 10 0.60
GMX28992 Maxwell VC Green 11 0.5     GHE2859025 Viper Blue 10 0.60
GMX28994 Maxwell VC Green 10 0.6     GHE2859097 Viper Blue 10 0.60
GMX2899409 Maxwell VC Green 10 0.6     GHE28592LL Viper Yellow 10 0.80
GMX2899425 Maxwell VC Green 10 0.6     GHE28594 Viper Blue 10 1.30
GMX28995 Maxwell VC Green 11 0.9     GHE28595 Viper Yellow 10 1.20
GMX2899509 Maxwell VC Green 11 0.9     GHE2859509 Viper Yellow 10 1.20
GMX2899525 Maxwell VC Green 11 0.9     GHE2859597 Viper Yellow 10 1.20
G0028970 Maxwell VC Red 10 0.5     GTB20528 Viper Blue 11 1.10
G002897097 Maxwell VC Red 10 0.5     GTB20552 Viper Blue 11 1.10
G0028980 Maxwell VC Camel 11 1     GTB20562 Viper Blue 11 1.10
G002898097 Maxwell VC Camel 11 1     GVP28590 Viper Blue 11 1.10
G0028170 SE VC Blue 11 0.9     GVP2859009 Viper Blue 11 1.10
G002817009 SE VC Blue 11 0.9     GVP2859025 Viper Blue 11 1.10
G002817025 SE VC Blue 11 0.9     GVP2859097 Viper Blue 11 1.10
G002817097 SE VC Blue 11 0.9     GVP28592 Viper Blue 11 1.00
G0028172 SE VC Blue 12 1.1     GVP2859209 Viper Blue 11 1.00
G0028174 SE VC Blue 11 0.9     GVP2859225 Viper Blue 11 1.00
G0028175 SE VC Blue 11 0.4     GVP28592LL Viper Blue 11 1.00
GDF28190 SE VC None 11 1.1     GVP28594 Viper Blue 11 1.40
GDF2819009 SE VC None 11 1.1     GVP2859409 Viper Blue 10 0.40
GDF2819025 SE VC None 11 1.1     GVP2859425 Viper Blue 10 0.40
GDF28192 SE VC Yellow 12 0.9     GVP28595 Viper Blue 11 1.10
GDF28194 SE VC None 10 0.4     GVP2859509 Viper Blue 11 1.10
GDF28195 SE VC Yellow 11 0.4     GVP2859525 Viper Blue 11 1.10
GWS28170 SE VC Purple 10 0.6     GVP2859597 Viper Blue 11 1.10
GWS28175 SE VC Purple 10 0.4     GWS28590 Viper Blue 11 1.10
G0021018 Maxwell VC Blue 12 0.8     GWS2859009 Viper Blue 10 0.60
G002101809 Maxwell VC Blue 12 0.8     GWS2859025 Viper Blue 10 0.60
G0028490 Maxwell VC Black 11 1.1     GWS2859097 Viper Blue 10 0.60
GDF28990 Maxwell VC Yellow 11 1.30     GWS28592 Viper Blue 10 0.80
GDF2899009 Maxwell VC Yellow 11 1.30     GWS2859297LL Viper Yellow 10 0.80
GDF2899025 Maxwell VC Yellow 11 1.30     GWS28592LL Viper Yellow 10 0.80
GDF28992 Maxwell VC None 11 0.50     GWS28594 Viper blue 10 1.30
GDF28994 Maxwell VC None 10 0.50     GWS28595 Viper Yellow 10 1.20
GDF28995 Maxwell VC None 11 0.80     GWS2859509 Viper Yellow 10 1.20
G0021014 Avalanche Blue 10 0.40     GWS2859597 Viper Yellow 10 1.20
G002101409 Avalanche Blue 10 0.60     G0021187CT Burr Ridge blue 11 1.20
G0021019 Avalanche None 11 1.20     G0021187CT97 Burr Ridge blue 11 1.20
G0028830 Avalanche Yellow 10 0.80     G0028187 Burr Ridge Yellow 10 0.60
G002883097 Avalanche Yellow 10 0.80     G002818709 Burr Ridge Yellow 10 0.60
GAH28890 Avalanche Elite Green 11 0.30     G002818797 Burr Ridge Yellow 10 0.60
GAH2889009 Avalanche Elite Green 11 0.30     G0028186 Wicker Park Yellow 10 1.10
GAH2889097 Avalanche Elite Green 11 0.30     G0021221 Wicker Park Green 11 1.10
GAH28892LL Avalanche Elite Green 11 0.30     GLT28186 Wicker Park Blue 11 0.90
GAH28895 Avalanche Elite Green 12 0.90     GHE20601 PeeWee Blue 10 0.70
GAH2889509 Avalanche Elite Green 12 0.90     GHE2060197 PeeWee Blue 10 0.70
GAL28890 Avalanche Elite Green 12 0.90     GHE28601 PeeWee Blue 10 0.70
GAL2889009 Avalanche Elite Green 12 0.90     GHE2860197 PeeWee Blue 10 0.70
GAL2889097 Avalanche Elite Green 12 0.90     G0028190 Maxwell LX Blue 12 0.90
GAL28895 Avalanche Elite Green 12 0.90     G002819009 Maxwell LX Blue 12 0.90
GAL2889509 Avalanche Elite Green 12 0.90     G002819025 Maxwell LX Blue 12 0.90
GAV28890 Avalanche blue 12 0.90     G002819097 Maxwell LX Blue 12 0.90
GAV2889009 Avalanche blue 12 0.90     G0028195 Maxwell LX Blue 12 0.10
GAV2889025 Avalanche blue 12 0.90     GDF28530 Logan Square Blue 12 0.90
GAV2889097 Avalanche blue 12 0.90     GDF2853009 Logan Square Blue 12 0.90
GAV28890CL Avalanche blue 12 0.90     GHE28530 Logan Square Yellow 10 0.90
GAV28890LL Avalanche blue 12 0.90     GHE2853009 Logan Square Yellow 10 0.90
GAV28892 Avalanche blue 12 0.80     GHE28535 Logan Square Yellow 10 0.70
GAV2889209 Avalanche blue 12 0.80     G0028181 Hinsdale Blue 11 0.60
GAV2889225 Avalanche blue 12 0.80     GHE28183 Brianne Green 10 0.30
GAV28894 Avalanche blue 11 0.50     GHE2818309 Brianne Green 10 0.30
GAV2889409 Avalanche blue 11 0.50     GHE28580 Allerton Yellow 10 1.20
GAV2889425 Avalanche blue 11 0.50     GHE2858009 Allerton Yellow 10 1.20
GAV28895 Avalanche blue 12 0.70     GHE2858025 Allerton Yellow 10 1.20
GAV2889509 Avalanche blue 12 0.70     GHE28585 Allerton Yellow 10 1.10
GAV2889525 Avalanche blue 12 0.70     GDF28528 Viper Blue 12 1.10
GHE28890 Avalanche blue 10 1.10     GLF28528 Viper Blue 11 0.30
GHE2889009 Avalanche blue 10 1.10     GLF28595 Viper Blue 11 0.30
GHE2889025 Avalanche blue 10 1.10     GTB20670 Wrightwood Purple 11 0.70
GHE2889097 Avalanche blue 10 1.10     GWS28522 Viper Blue 11 1.20
GHE28892 Avalanche blue 10 0.70     GWS28528 Viper Blue 11 1.40
GHE28894 Avalanche blue 10 1.80     G0021020 Logan Square Red 11 1.30
GHE28895 Avalanche blue 10 0.90     G0021021 Lemora Yellow 11 1.30
GHE2889509 Avalanche blue 10 0.90     G0028191 Hinsdale Blue 11 0.60
GLS28890 Avalanche blue 11 0.70     G0028196 Wicker Park Yellow 11 1.00
GWS28890 Avalanche blue 11 0.30     G002819697 Wicker Park Yellow 11 1.00
GWS2889009 Avalanche blue 11 0.30     G0028197 Lemora None 11 1.00
GWS2889025 Avalanche blue 11 0.30     G002819797 Lemora None 11 1.00
GWS2889097 Avalanche blue 11 0.30     GWS28570 Viper Blue 11 1.60
GWS28890CL Avalanche blue 11 0.30     GWS2857097 Viper Blue 11 1.60
GWS28892 Avalanche Yellow 11 0.50     GWS28575 Viper None 11 1.60
GWS28894 Avalanche Yellow 11 1.10     GWS2857597 Viper None 11 1.60
GWS28895 Avalanche blue 12 1.10
GWS2889509 Avalanche blue 12 1.10
GWS28591 Viper Red 10 0.50
GWS28599 Viper Green 10 0.60
