How to remove filter to check for debris of GA711044 FILL VALVE for Maxwell G0028992, GMX28990/4/5 Tanks

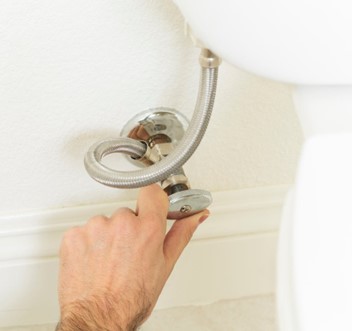

Step 1 - Turn off the shut-off valve




Step 2 - Remove supply line from fill valve shank

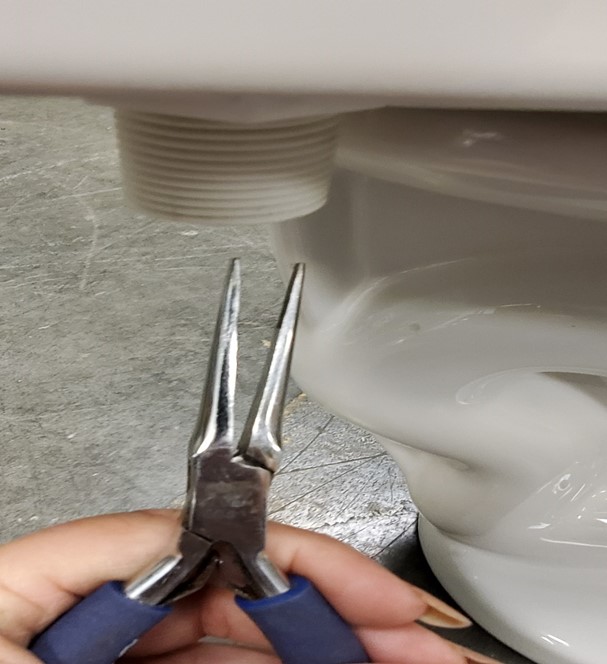

Step 3 - Using needle nose pliers or tweezers, reach up inside the shaft of the fill valve and pull out the filter

KBA_3573_3.jpg  KBA_3573_4.png

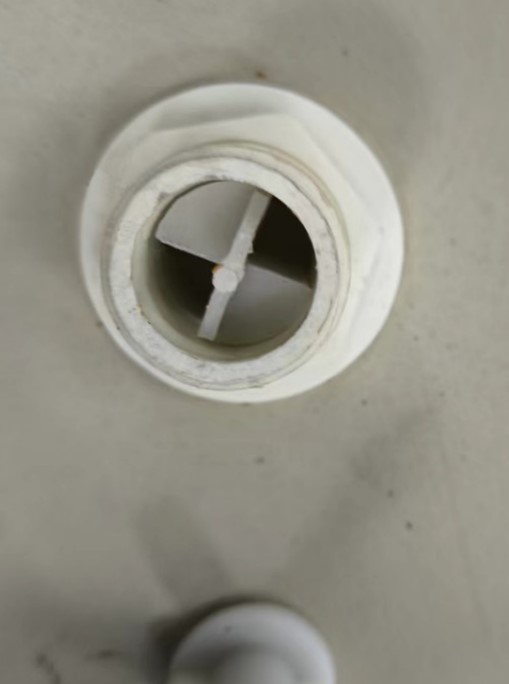

Step 4 - Check filter for debris. If debris is found, clean out filter and wipe out the inside of the shaft to remove debris.

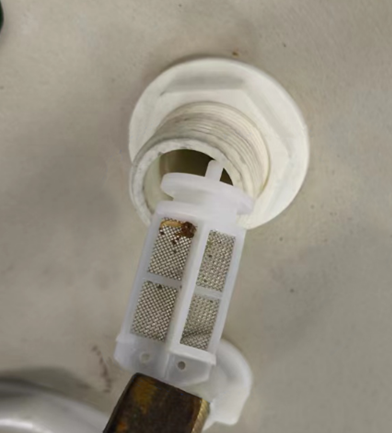

Above the right image is an example of the filter and shaft with debris

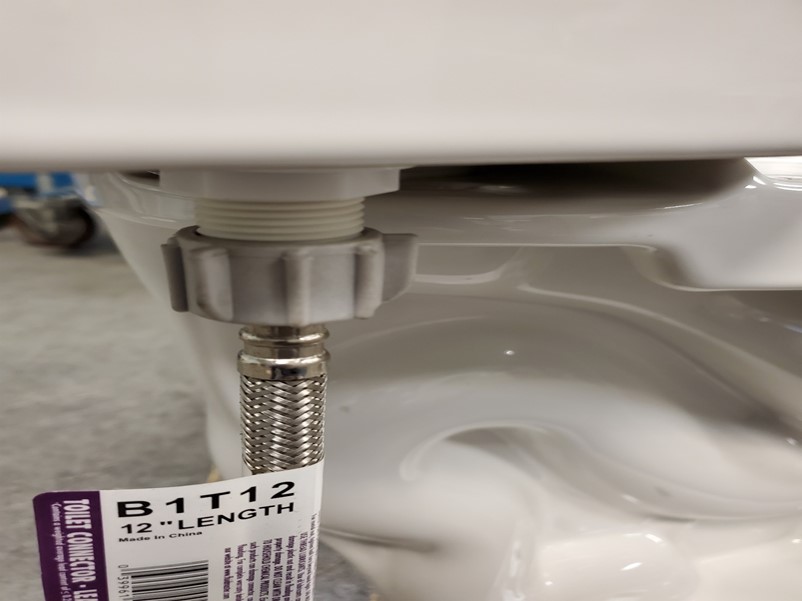

Reinstall filter once cleaned

KBA_3573_5.gif   KBA_3573_6.jpg
