How to remove filter to check for debris of GA711033 FILL VALVE for Wrightwood GTB20760

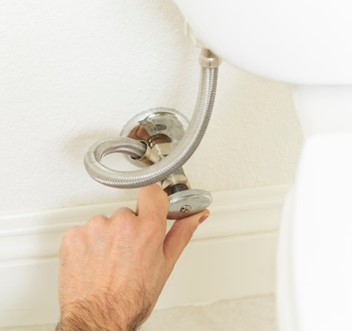

Step 1 - Turn off the shut-off valve

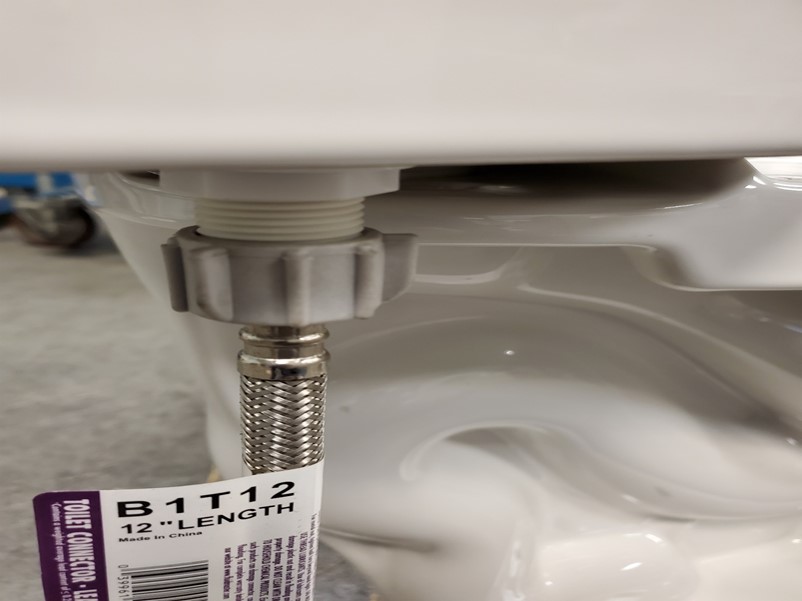

Step 2 - Remove supply line from fill valve shank

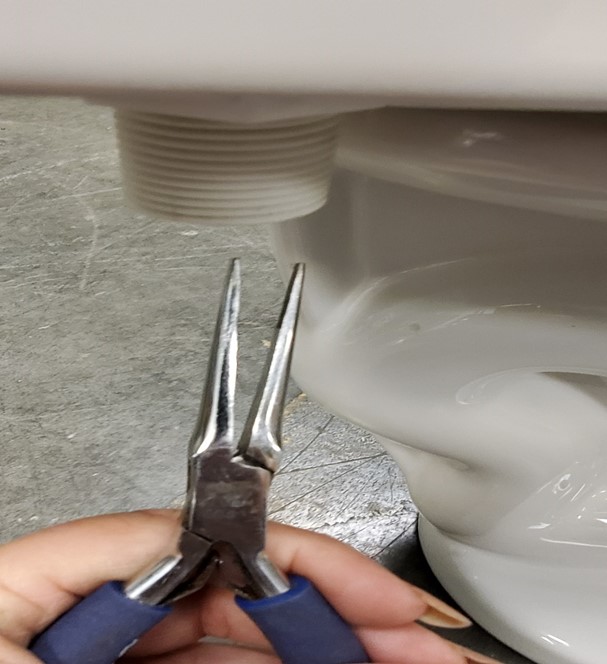

Step 3 - Using needle nose pliers or tweezers, reach up inside the shaft of the fill valve and pull out the filter

KBA_3573_3.jpg KBA_3091_4.jpg



Step 4 - Check filter for debris. If debris is found, clean out filter and wipe out the inside of the shaft to remove debris.

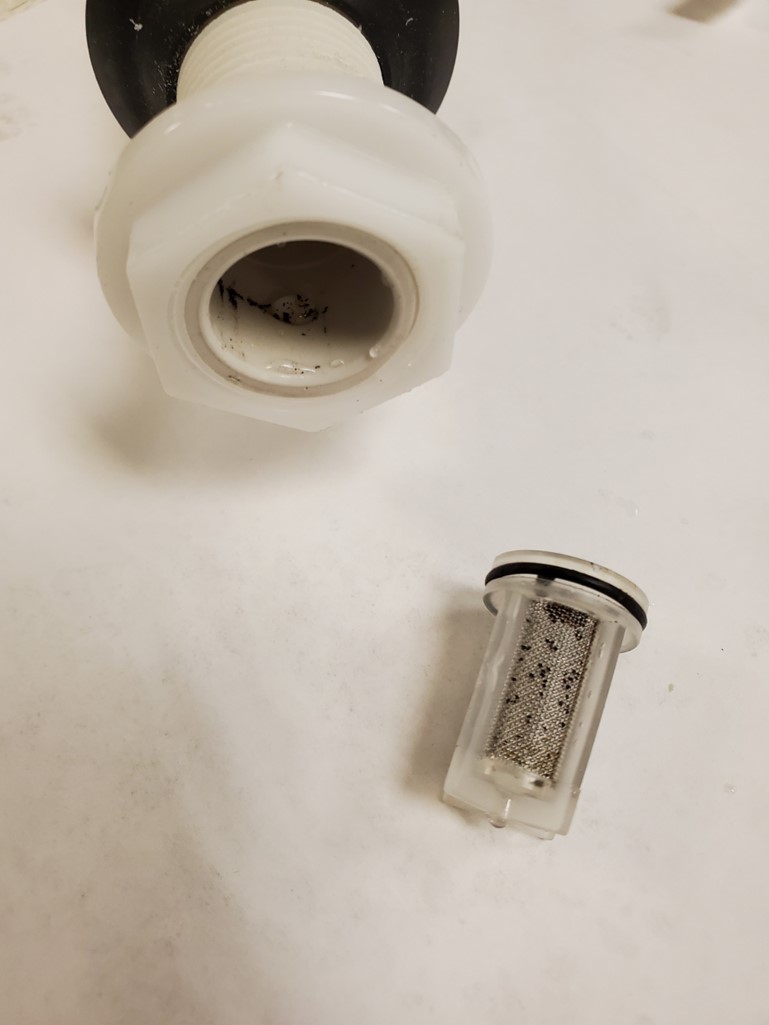

Below is an example of a filter and shaft with debris

Reinstall filter once cleaned
