How to remove Selene handle?

Pauline

Updated February 15, 2025 03:49

For Kitchen Faucets

Pull away the handle cap to access the set screw, located at the underside of the handle.

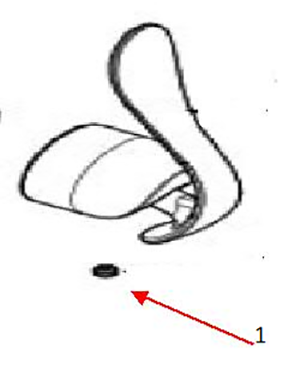

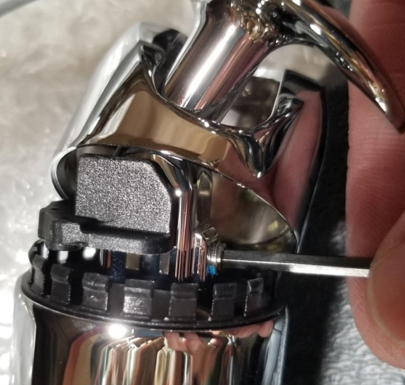

Use a hex wrench to unscrew counter-clockwise to loosen the set screw (part #1).
The hex wrench is 2.5 mm or 1/8".
Pull out the on/off handle assembly.
If still hard to pull it away, then loosen the set screw again.

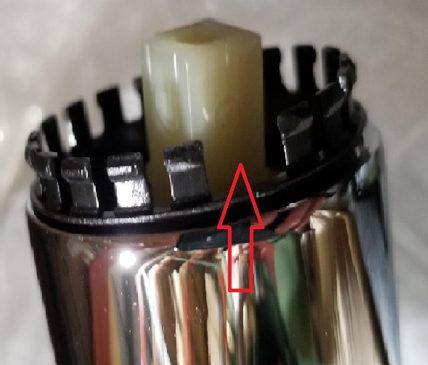

NOTE: If the black handle trim adapter is pull-out at the same time, when placing it back, ensure the bigger opening gap is the orientated downside of the handle, below the surface of the cartridge stem where the set screw will be mounted.
