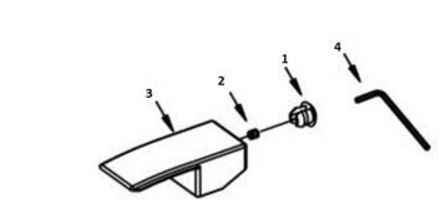

If the handle has a set screw:
- Pull out the rubber button (part #1).
- Use a hex wrench (part #4) to unscrew counter-clockwise to loosen the set screw (part #2).
The hex wrench is 2.5 mm head or 1/8". - Then pull out the main handle (part #3).
If still hard to be pulled away, loosen the set screw again.
If the handle has NO set screw:
- Hold the lever handle at the Off position.
- Use a wrench (part #2) on the handle neck and unscrew counter-clockwise.
- Pull out the lever (part #1).
- Then unscrew and pull out the canopy (part #3).
