How to remove Reef handle?

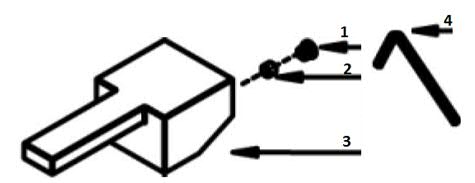

For Single Handle Lavatory faucets:


  1. Pull out the rubber button (part # 1) by hand.
  2. Use a hex wrench (part #4) to unscrew counter-clockwise to loosen the set screw (part #2).
    The hex wrench is 2.5 mm head or 1/8".
  3. Pull out the handle (part #3). If still hard to pull away, loosen the set screw again.




For Two Handle Centerset & Roman Tub faucets:


  1. Pull out the cap (part #1). Then you can see the set screw.
  2. Unscrew the handle and the set screw counter-clockwise using Philips or a flat-head screwdriver.
  3. Pull out the handle.



For Two Handle Mini-Widespread faucets :

  1. Turn the water off under the sink (hot and cold supply lines).
  2. Support the handle valve body under the sink. The handle valve body will fall off when the handle is removed.
  3. Turn the handle ring (part #1) counter-clockwise by hand until the handle can be removed completely. If you are unable to remove the handle ring with your hand, you can put a cloth around the ring and use a pair of pliers or an adjustable wrench to loosen it.

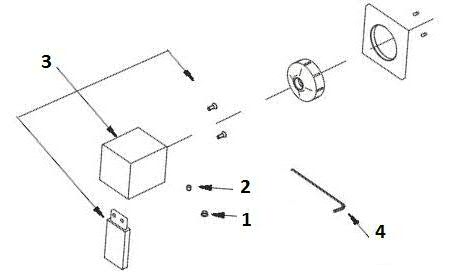

For Showers:


  1. Pull out the rubber cap (part #1).
  2. Unscrew the set screw (part #2) using a hex wrench (part #4) counter-clockwise.
    The hex wrench is 2.5 mm head or 1/8".
  3. Pull out the handle (part #3).
