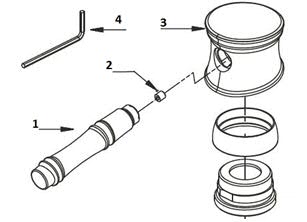

For Single Handle Lavatory Faucets:
- Turn the lever handle (part #1) counter-clockwise until it is removed.
- Use a hex wrench (part # 4) to unscrew the set screw (part #2) counter-clockwise.
The hex wrench is 2.5 mm head or 1/8". - Then pull down the handle (part #3). If still hard to be pulled away, loosen the set screw more.

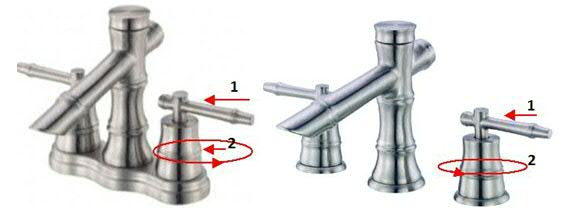

For 2-Handle Faucets:
- Hold the lever handle (part #1) at the OFF position.
- While holding the lever, turn the handle canopy (part #2) counter-clockwise by hand until the handle assembly is completely removed.

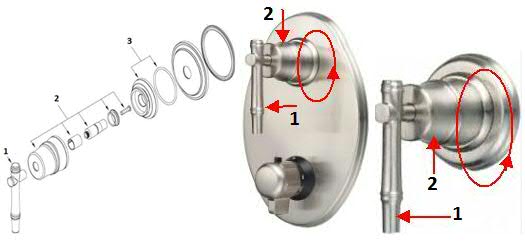

For Single Handle Pressure Balance Shower:
- Hold the lever handle (part #1) at the OFF position (facing down).
- While holding the lever, turn the handle canopy (part #2) counter-clockwise by hand until the handle assembly is completely removed.

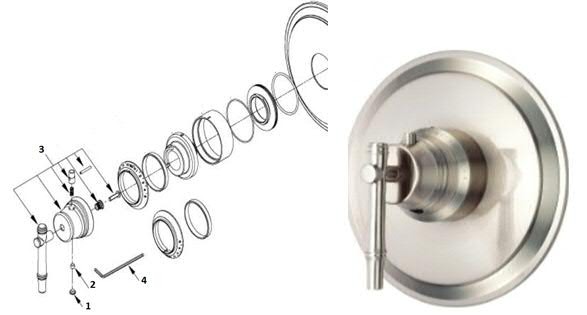

For 3/4" Thermostatic Shower:
- Pull the rubber button (part #1).
- Use a hex wrench (part #4) to unscrew the set screw (part #2) counter-clockwise.
- Pull out the handle (part #3).
For 3/4" Volume Control, 4-Port Diverter or 1/2" Thermostatic Valve:
- Hold the lever handle (part #1) at the OFF position (facing down).
- While holding the lever handle, turn the handle canopy (part # 2) counter-clockwise by hand until the handle is completely removed from the handle trim ring (part #3).
