How to remove Bannockburn handle?

G Admin

Updated February 15, 2025 04:10

For Lavatory, Shower, and Roman Tub Faucets:

Hold the lever handle (part #1) at the OFF position.
Rotate the canopy (part #2) counter-clockwise by hand all the way till the handle is removed.

Sometimes, you need to tighten the ring between the lever handle and the canopy before starting to remove the handle.

For 3/4" Thermostatic Valve Trim:

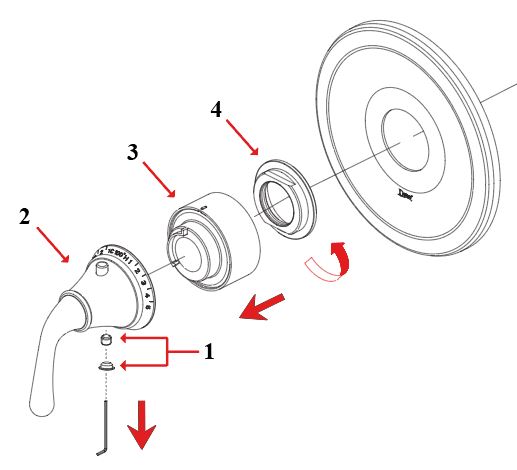

Pull out the rubber button (part #1) and unscrew the set screw (part #1) using a hex wrench counter-clockwise.
The hex wrench is 2.5 mm head or 1/8".
Pull out the handle assembly (part #2).

Follow the below steps to remove the remaining handle trim kits to reach the cartridge and the valve.

Remove the limit stop (part #3).
Unscrew the handle trim ring (part #4) counter-clockwise.
Pull out the escutcheon plate to reach the cartridge and the thermostatic valve.

Click here for the instructions on how to remove or install the thermostatic cartridge for a 3/4" Thermostatic Shower Valve

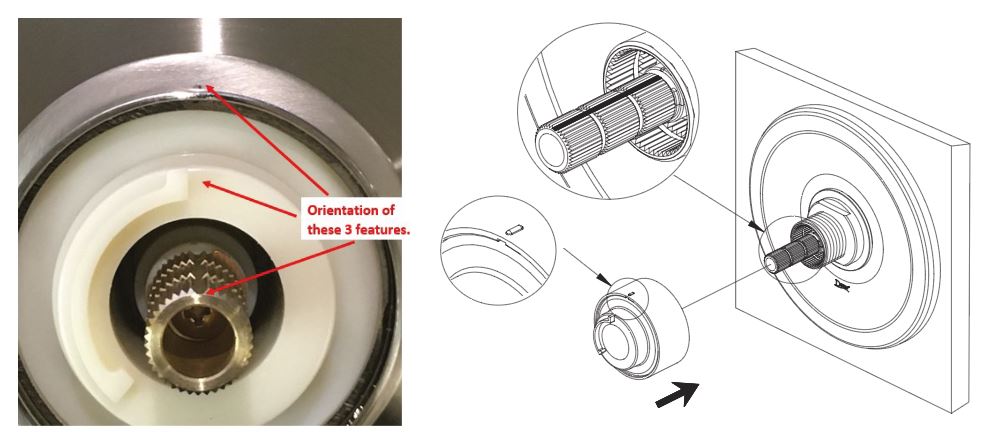

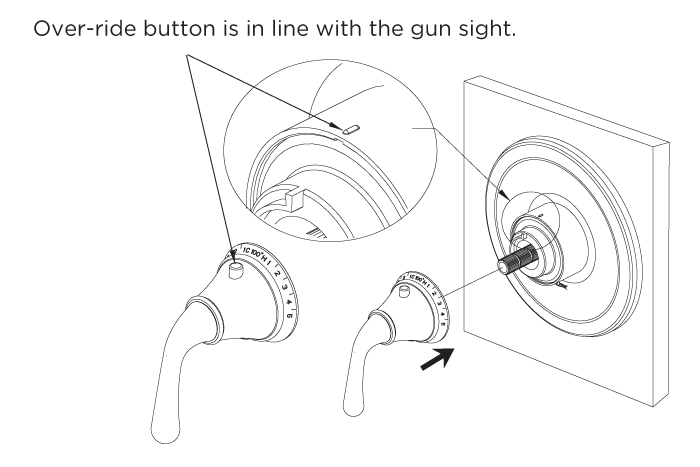

NOTE: When reinstalling the limit stop and the handle assembly, align the gun sight on the limit stop with the notch on the valve cartridge stem. When recalibrating the output temperature for the high-temperature over-ride position, rotate the cartridge stem counter-clockwise until the desired temperature is reached. For a lower output temperature over-ride position, rotate the cartridge stem clockwise until the desired temperature is reached.
