How Do I Install or Replace The Diverter For My Kitchen Faucet With A Vertical Diverter?

This article will explain how to replace a vertical diverter of a kitchen faucet.

To replace the diverter, you must:

1. Remove the old diverter
2. Install the new diverter
3. Re-install the spout and test for leaks

Please Note: Before doing any work on your faucet, please shut off the water supply for the faucet.

Once the water is turned off, you are ready to begin.

Step 1 - Remove the old diverter

• Remove the spout

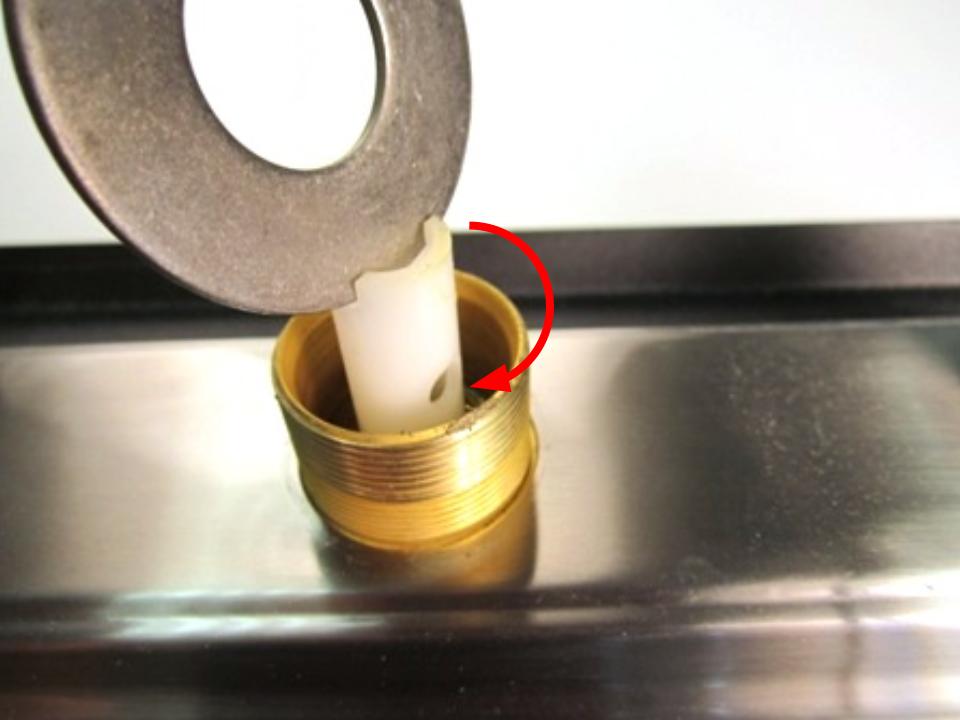

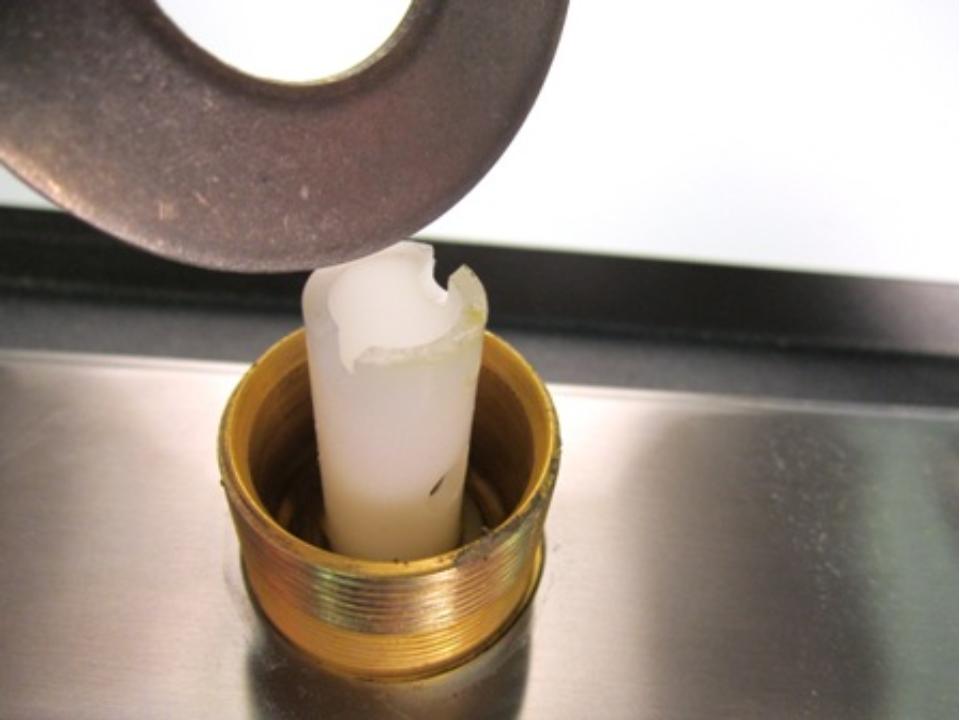

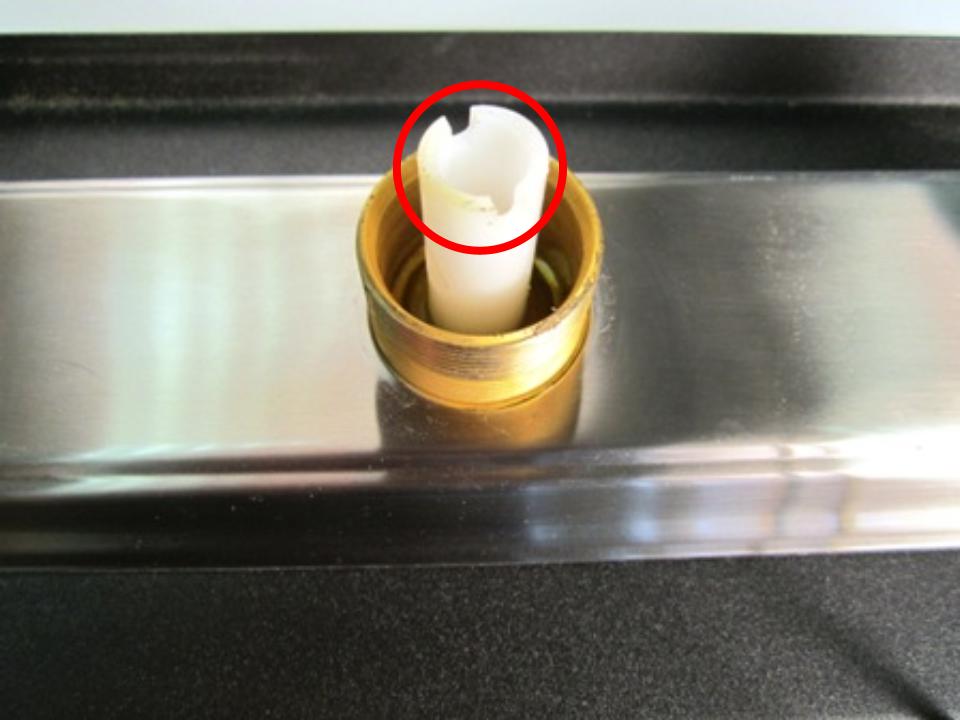

• Once the spout has been removed, the top of the diverter should be visible. Locate the two openings and insert a flat tool or object. Turn counter-clockwise until it is completely removed from the faucet body.

Step 2 - Install the new diverter

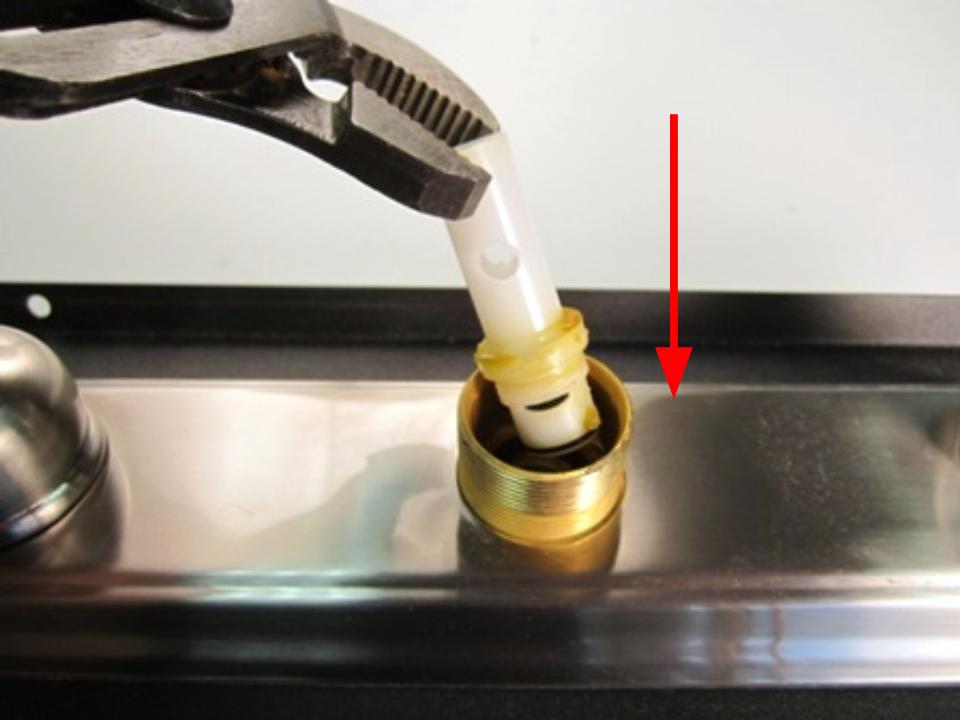

• Slide the diverter into the faucet body. Using the tool you used to remove the diverter, screw the diverter into the faucet body by turning clockwise.

Step 3 - Re-install the spout and test for leaks

• Re-install the spout. Once the spout is installed, turn the faucet on and let the water run for 10 minutes. Watch closely for any leaks.
