How Do I Install or Replace The Diverter For My Kitchen Faucet With A Horizontal Diverter?

This article will explain how to replace a horizontal diverter of a kitchen faucet.

To replace the diverter, you must:

1. Remove the old diverter
2. Install the new diverter
3. Re-install the spout and test for leaks

Please Note: Before doing any work on your faucet, please shut off the water supply for the faucet.

Once the water is turned off, you are ready to begin.

Step 1 - Remove the old diverter

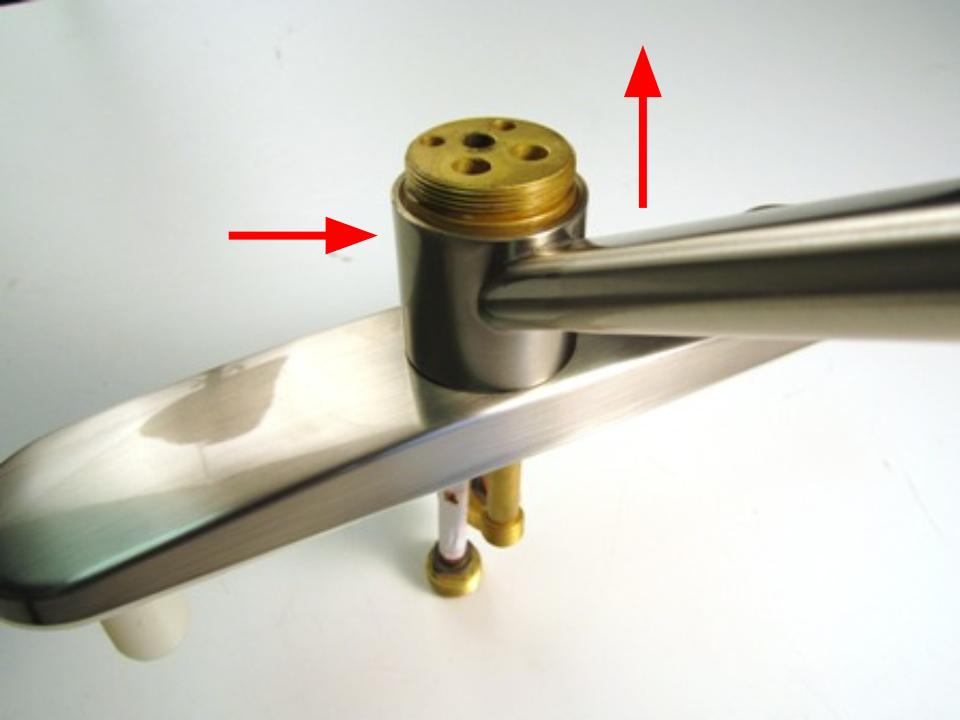

• Remove the spout.

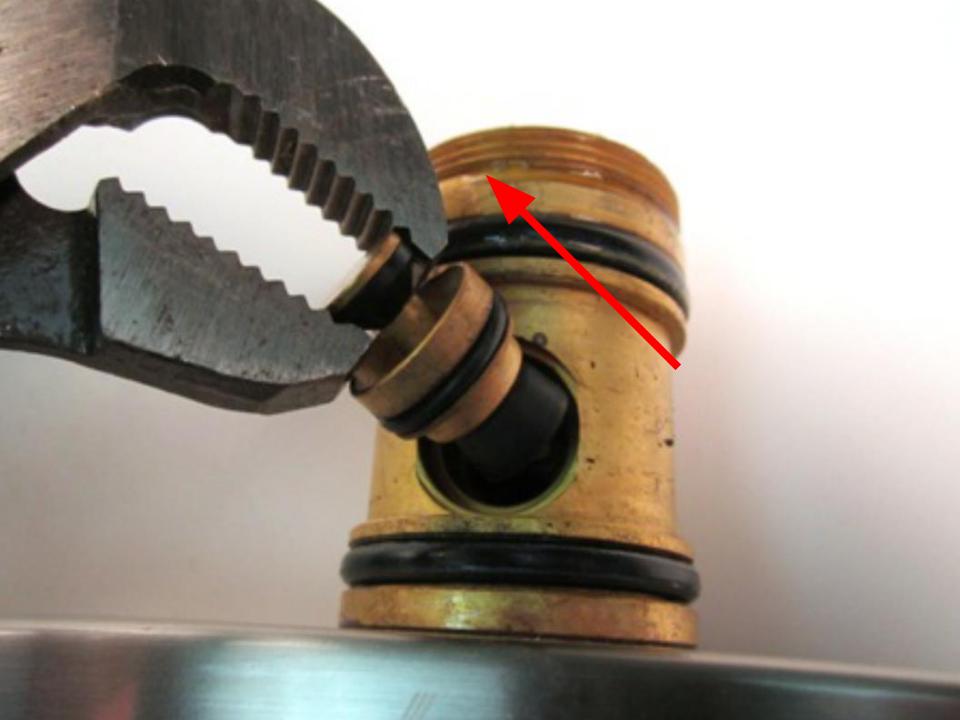

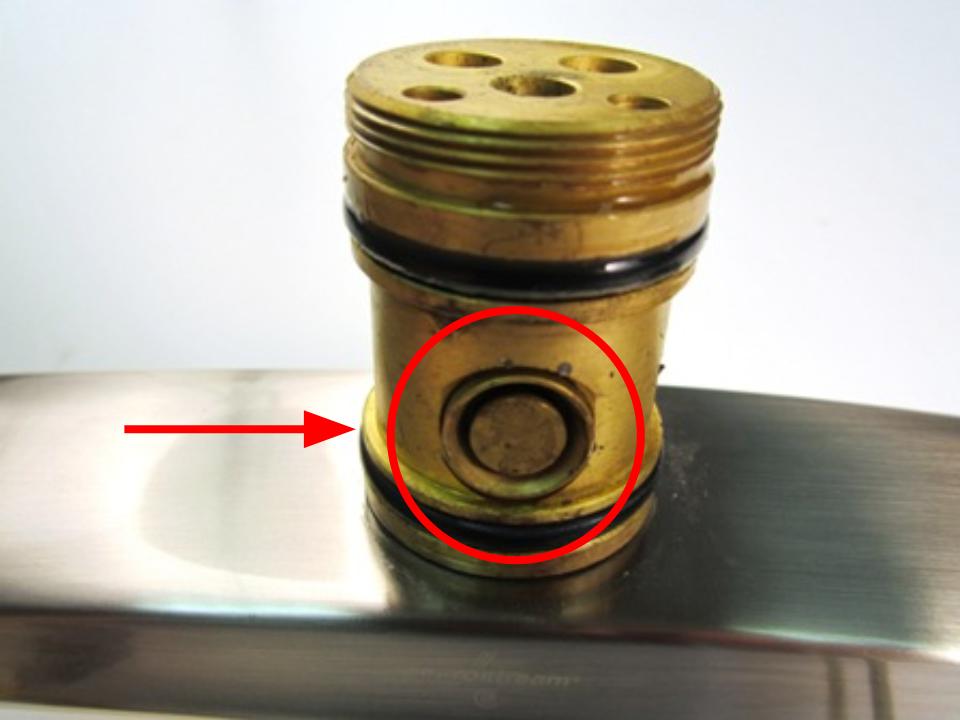

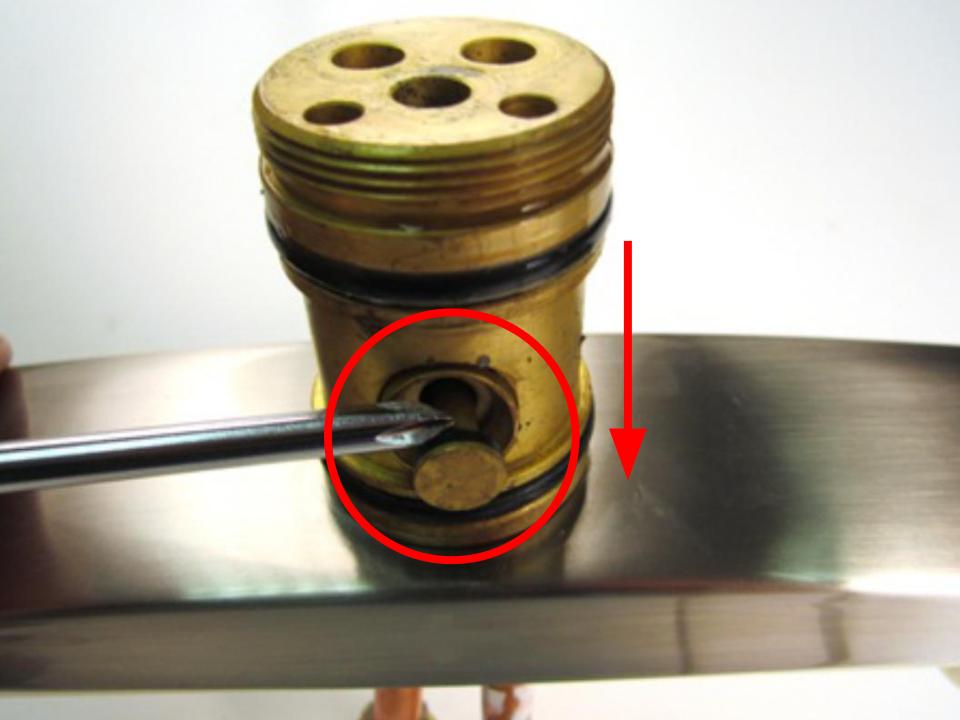

• Once the spout is removed, the diverter will be visible. Use a tool with a thin flat edge to pry the diverter out of the faucet body.

Step 2 - Install the new diverter

• Slide the new diverter into the faucet body. Make sure that the diverter slides in all the way.

Step 3 - Re-install the spout and test for leaks

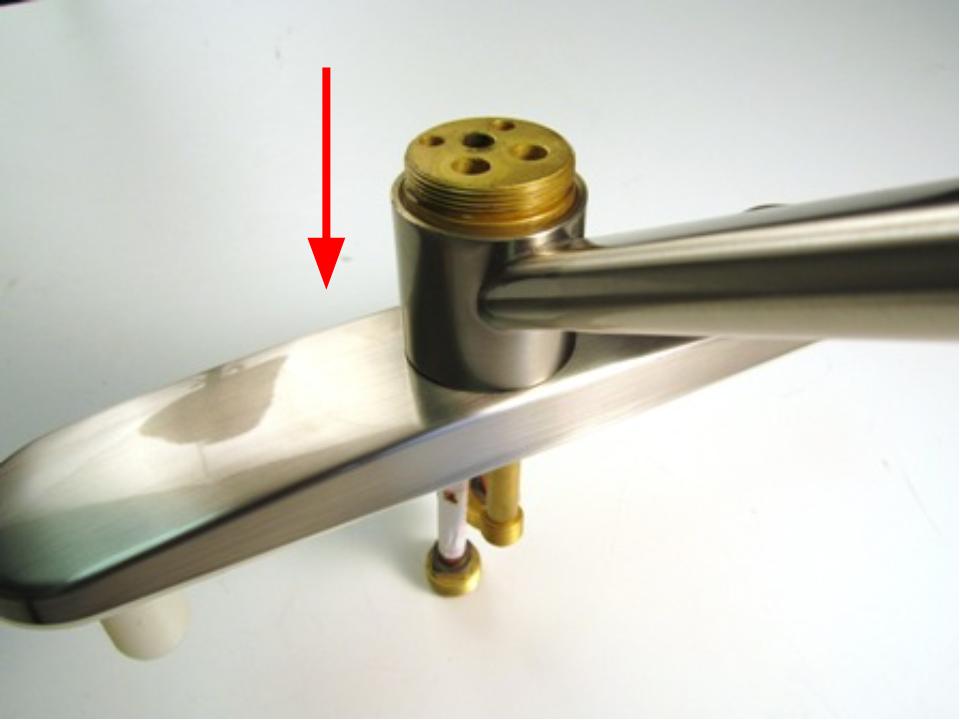

• Re-install the spout. Once the spout is installed, turn the faucet on and let the water run for 10 minutes. Watch closely for any leaks.
