What is Gerber TREYSTA™ Valve System?



An all-new in-wall valve system to help plumbers Work Smarter, Not Harder.

A single valve that serves both the Danze by Gerber and Gerber brands and delivers enhanced performance. The Treysta Valve System is designed for an easier installation process to save time and money, and is engineered with the experts in mind. Treysta provides flexibility based on the specific requirements of each installation.

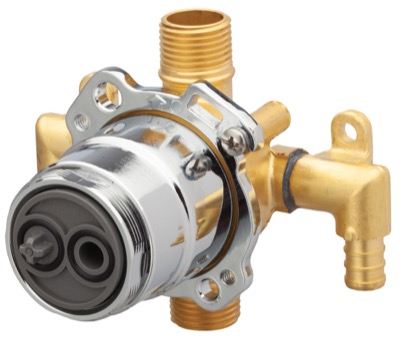

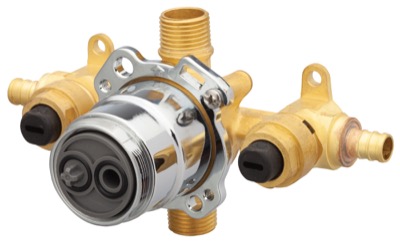

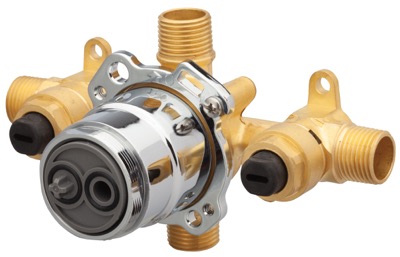

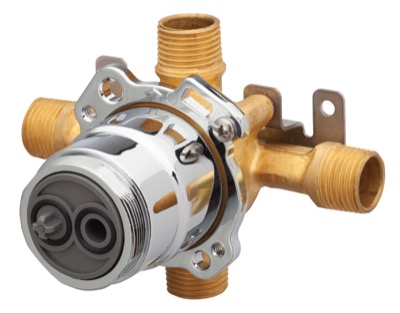

Treysta G00GS527STreysta Install Method 1Treysta installation method 2



G00GS504 G00GS504S G00GS505 G00GS505S
GS-504 GS-504-S GS-505 GS-505-S
G00GS507 G00GS507S G00GS525 G00GS525S
GS-507 GS-507-S GS-525 GS-525-S
G00GS527 G00GS527S
 GS-527  GS-527-S
G00GS555S G00GS557S G00GS554S
GS-555-S GS-557-S GS-557-S
G00GS504T G00GS504ST G00GS505T G00GS505ST
G00GS507T G00GS507ST






Connection Type/configuration:

With ¼ turn service stops?

Plaster Guard Type?

Square or Round (flat top and side)

Product website link



Inlet

Outlet

Inlets orientation

With Diverter

180-degree rotation

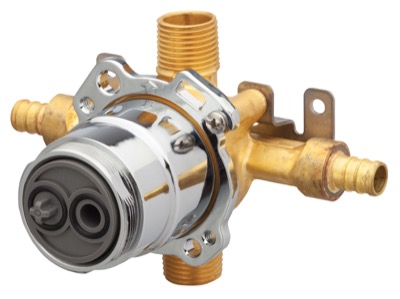

G00GS504 *

1/2" F1807 PEX (crimp)

1/2" IPS/sweat

Horizontal





Square

Click to go to G00GS504 product page

G00GS505 *

1/2" IPS/sweat

1/2" IPS/sweat

Horizontal





Square

Click to go to G00GS505 product page

G00GS507 *

1/2" F1960 PEX (cold expansion)

1/2" IPS/sweat

Horizontal





Square

Click to go to G00GS507 product page

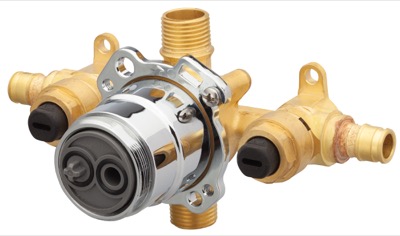

G00GS504S *

1/2" F1807 PEX (crimp)

1/2" IPS/sweat

Horizontal



X

Round

G00GS505S *

1/2" IPS/sweat

1/2" IPS/sweat

Horizontal



X

Round

G00GS507S *

1/2" F1960 PEX (cold expansion)

1/2" IPS/sweat

Horizontal



X

Round

G00GS525

1/2" F1807 PEX (crimp)

1/2" IPS/sweat

Vertical



X



Square

Click to go to G00GS525 product page

G00GS527

1/2" F1960 PEX (cold expansion)

1/2" IPS/sweat

Vertical



X



Square

Click to go to G00GS527 product page

G00GS525S

1/2" F1807 PEX (crimp)

1/2" IPS/sweat

Vertical



X

X

Round

G00GS527S

1/2" F1960 PEX (cold expansion)

1/2" IPS/sweat

Vertical



X

X

Round

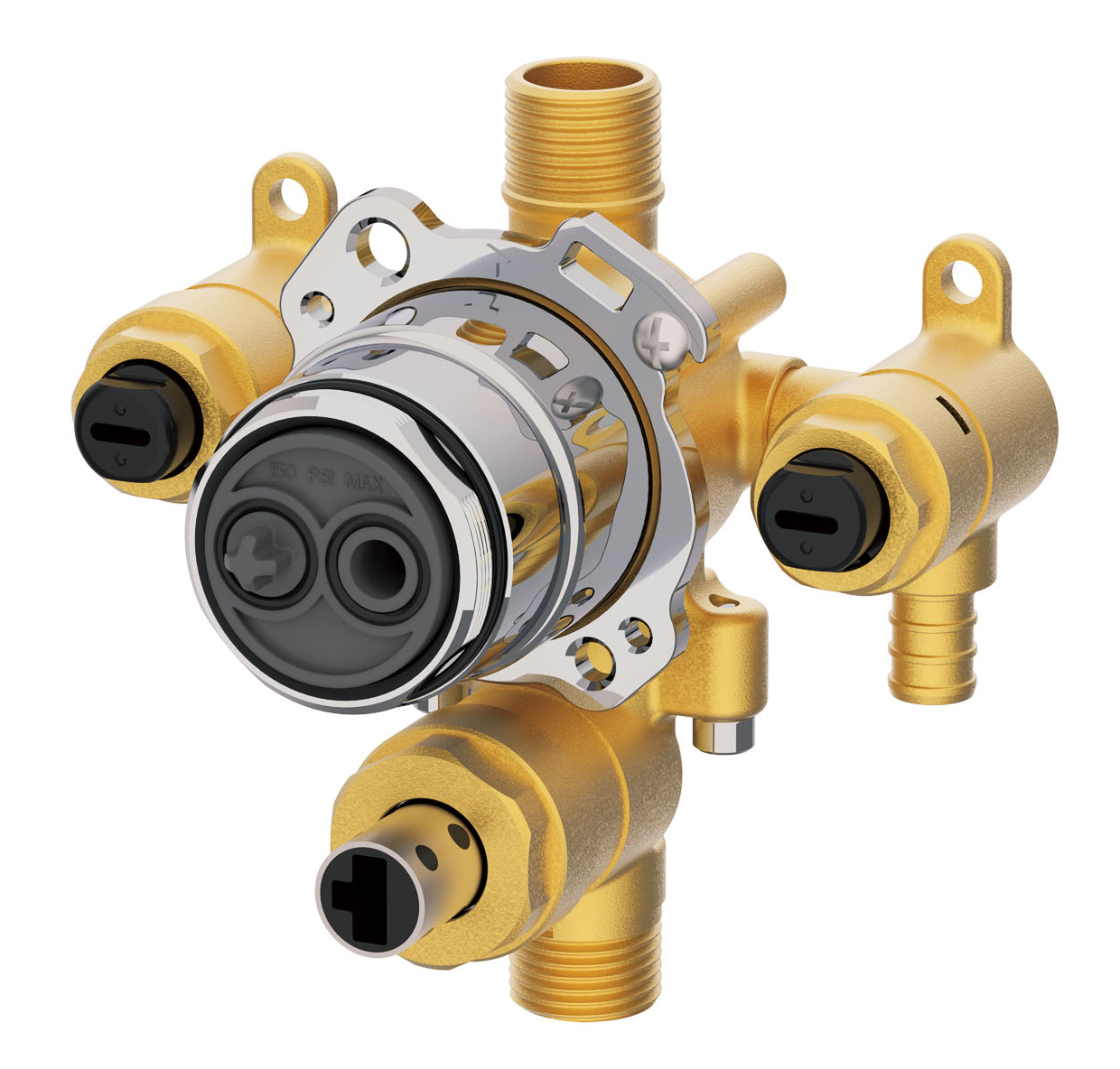

G00GS554S * 1/2" F1807 PEX (crimp) 1/2" IPS/sweat Vertical X   X Round Click to go to G00GS554S product page

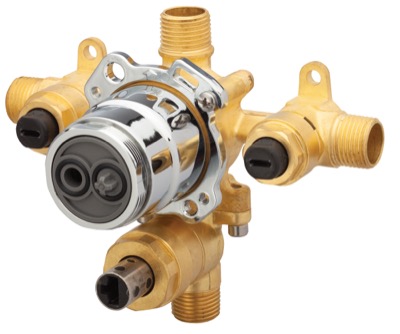

G00GS555S *

1/2" IPS/sweat

1/2" IPS/sweat

Horizontal

X



X

Round

G00GS557S *

1/2" F1960 PEX (cold expansion)

1/2" IPS/sweat

Vertical

X



X

Round

G00GS504T *

1/2" F1807 PEX (crimp)

1/2" IPS/sweat

Horizontal





Square

G00GS505T *

1/2" IPS/sweat

1/2" IPS/sweat

Horizontal





Square

G00GS507T *

1/2" F1960 PEX (cold expansion)

1/2" IPS/sweat

Horizontal





Square

G00GS504ST *

1/2" F1807 PEX (crimp)

1/2" IPS/sweat

Horizontal



X

Round

G00GS505ST *

1/2" IPS/sweat

1/2" IPS/sweat

Horizontal



X

Round

G00GS507ST *

1/2" F1960 PEX (cold expansion)

1/2" IPS/sweat

Horizontal



X

Round

* Never invert the valve



Features:

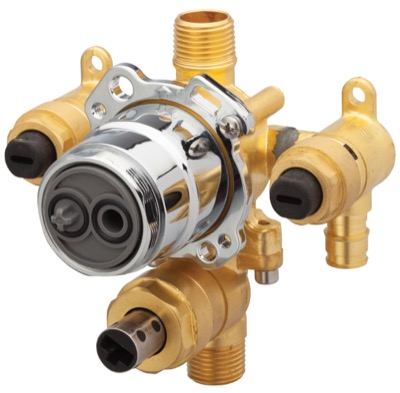

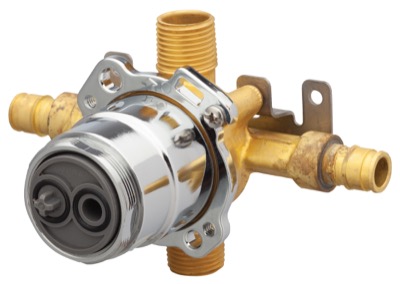

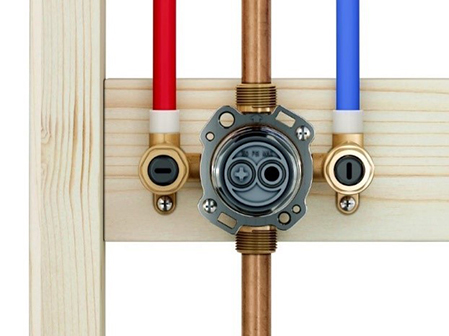

  • Vertical inlets allow flexibility in the wall and save money and time at the rough-in stage. In PEX applications, a valve can be installed next to a stud without re-framing.

    Treysta Install 1 Treysta Install 2
  • Solution for with or without stops, accommodates back-to-back installations and is available in IPS/Sweat, F1960 Cold Expansion PEX and F1807 Crimp PEX connections.

     IPS / Sweat  IPS/ Sweat
    Horizontal Inlets
    with
    STUB-OUT

    Horizontal Inlets

    Vertical Inlets

    Integrated Diverter

     Stops  G00GS505ST  G00GS505S    G00GS555S
     Without Stops  G00GS505T  G00GS505
     Cold Expansion PEX  Cold Expansion PEX
    Horizontal Inlets
    with
    STUB-OUT

    Horizontal Inlets

    Vertical Inlets

    Integrated Diverter

     Stops  G00GS507ST  G00GS507S  G00GS527S  G00GS557S
     Without Stops  G00GS507T  G00GS507  G00GS527
     Crimp PEX  Crimp PEX
    Horizontal Inlets
    with
    STUB-OUT

    Horizontal Inlets

    Vertical Inlets

    Integrated Diverter

     Stops  G00GS504ST  G00GS504S  G00GS525S G00GS554S
     Without Stops  G00GS504T  G00GS504  G00GS525

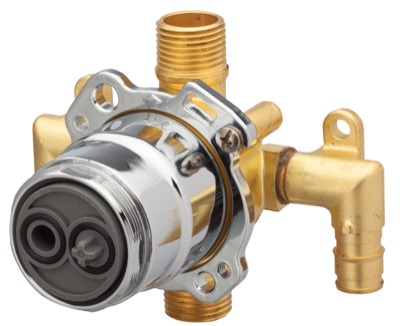

  • The valve body of F1960 Cold Expansion PEX G00GS525 (no stop) & G00GS525S (with stops) and F1807 Crimp PEX G00GS527 (no stop) & G00GS527S (with stops) can be rotated 180 degrees for installation with inlets coming down from above. Apply rotation of retainer ring and plaster guard at rough-in installation. For detailed How-To, read this article on How to rotate a Treysta valve 180 degrees for inlets coming down from above?

  • Easy-install innovative plaster guard. Square plaster guard supports installations in smaller spaces and for valves without stops.

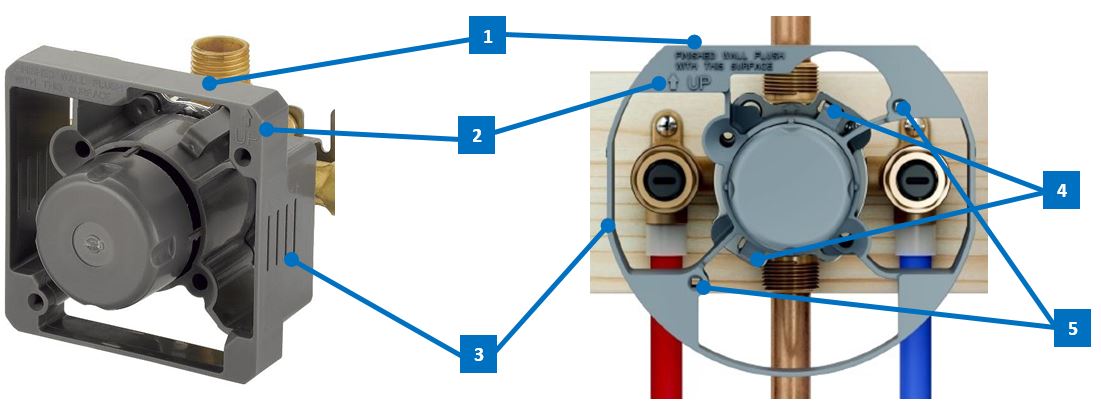

    Feature - Plaster Guard

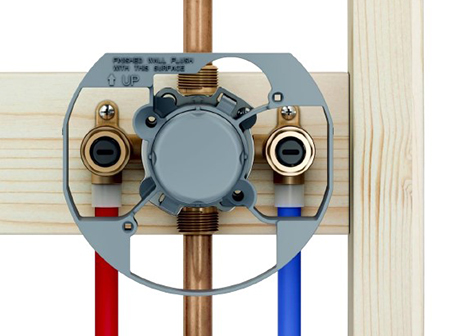

    1- A flat surface on top allows using a level to ensure the installation is level. Flat on top and side to simplify tile cutting.
    2- UP arrow indicator to ensure proper installation.
    3- Finished wall depth indicators in ¼" increments for easy depth indexing.
    4- Features a no-tool clip design for fast removal while providing a secure hold.
    5- Two attachment points for thin-wall installations.

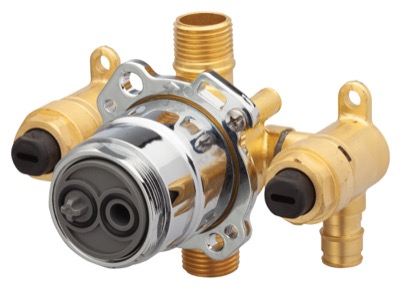

  • Easy access to integrated mounting holes and quarter-turn service stops

    Feature Stops

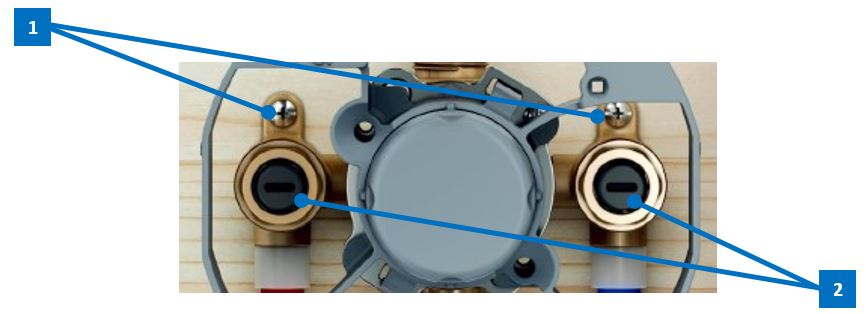

    1- Integrated mounting holes make installation faster and easier
    2- Quarter turn service stops open and close easily using either a flathead screwdriver in the slot or pliers on the flat sides. Stops secured with durable, threaded brass nuts easily tightened with a standard socket. The open and closed position is clearly indicated by slot direction.

     Stop Closed

    CLOSED -

    Perpendicular to the valve inlet
     Stop Open

    OPEN -

    In-line with the valve inlet

    For detailed How-To, read this article on How to remove and replace the servicing stops.

  • Pressure Test Plug included for easy pressure-testing to 150 PSI (air or water) with either mixed or isolated inlets

    Pressure Testing Cap Feature 1

    1-     DUAL INLET TESTING - Default as shipped. Install with the open end facing in for mixed pressure testing

    Pressure Testing Feature 2
    2-     SINGLE INLET TESTING - Install with the open end facing out to plug one inlet and test for cross-flow

    For detailed How-To, read this article on How to use the pressure test cap for air or water pressure testing?

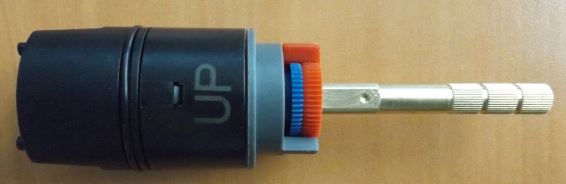

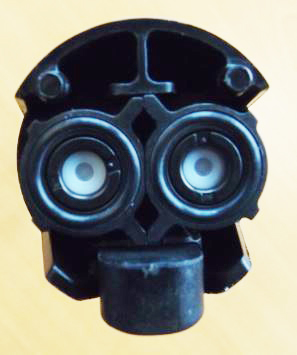

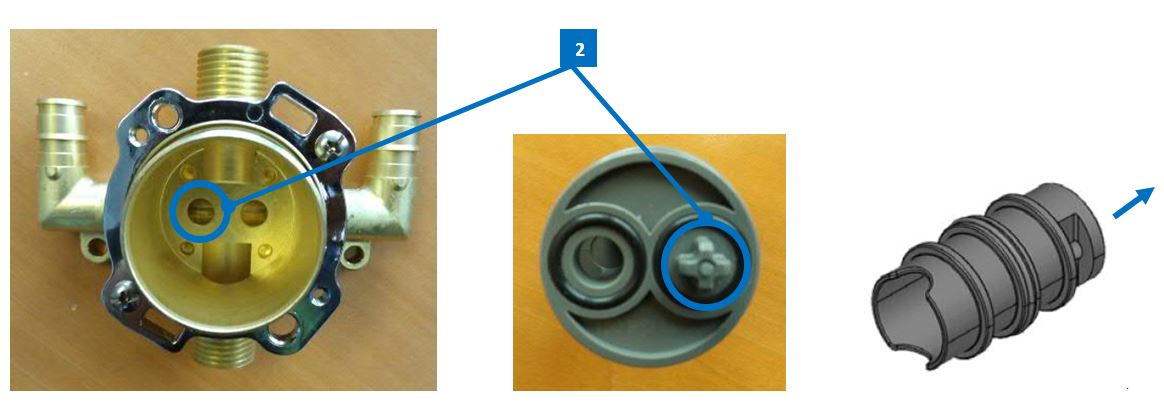

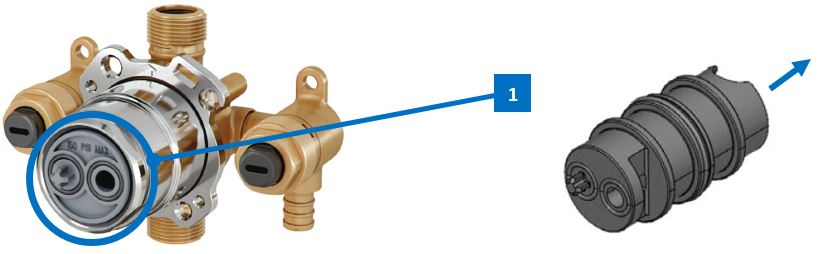

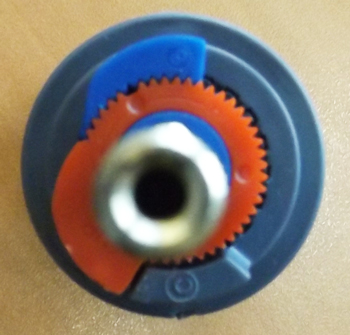

  • New Treysta ceramic disc cartridge GA510015 is included with compatible Danze by Gerber and Gerber shower trims to avoid the possibility of damage prior to trim installation. Check valves are integrated in the cartridge to reduce the complexity of stops.

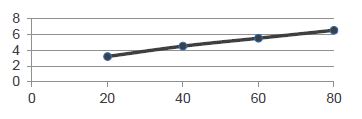

    Cartridge provides ASSE 1016 compliance down to 1.3 gpm. Maximum flow rate of 7.3 gpm at 80 psi

    Flow Rate


    For detailed How-To, read these related articles

  • Valves compatible with existing shower trims for transition.

    We recommend that customers to purchase Treysta valves and trims with item numbers ending with the suffix TC together or old valves with trims with item numbers ending with a suffix T together for faster installation and simplicity, but there are fixes to allow for backwards compatibility if needed and as shown in the following:

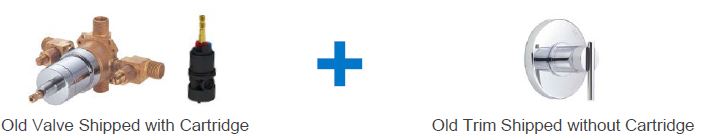

    Old Tub and Shower Trim - does not come with a cartridge and item number ending with a T (Danze item numbers)

    Feature Transition

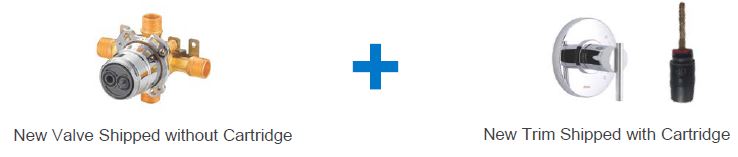

    New DBG Tub and Shower Trim - comes with a new Treysta cartridge and item number ending with a suffix TC

    Feature Transition 2
    To make Gerber or old Danze trim compatible with the new Treysta valve, you must install with the new Treysta cartridge (which is sold separately from the valve body) and a bonnet nut in matching finish to the trim (also sold separately from the valve body).

    To make the new Danze by Gerber trim compatible with an older valve, you must use the cartridge shipped with the valve assembly and do not use the new Treysta cartridge (shipped with the new Danze by Gerber trims). DO NOT install the new Treysta cartridge with an old rough-in valve body. The new Treysta cartridge IS NOT compatible with the old rough-in valve.

    For more details on compatibility and transition, read this article on Is my existing shower product compatible with Treysta valves?

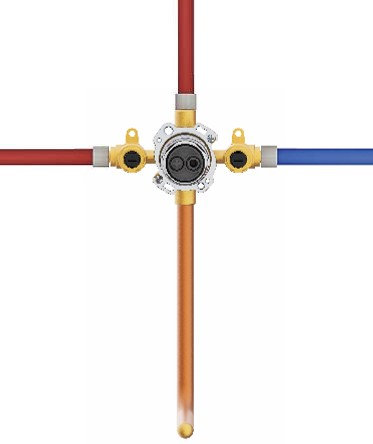

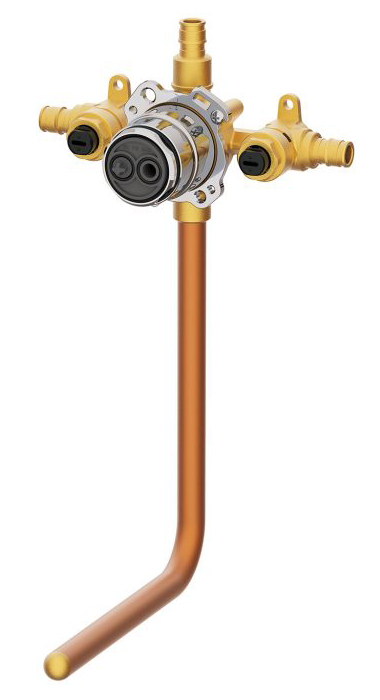

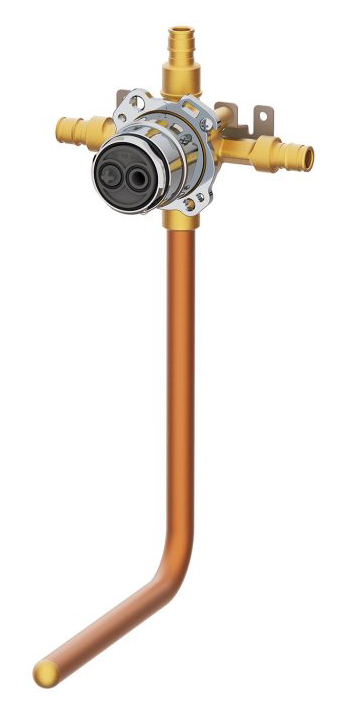

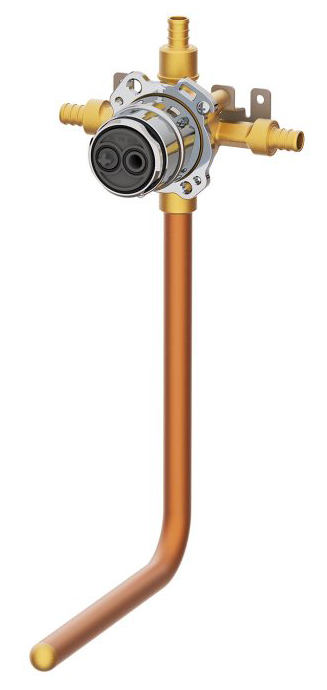

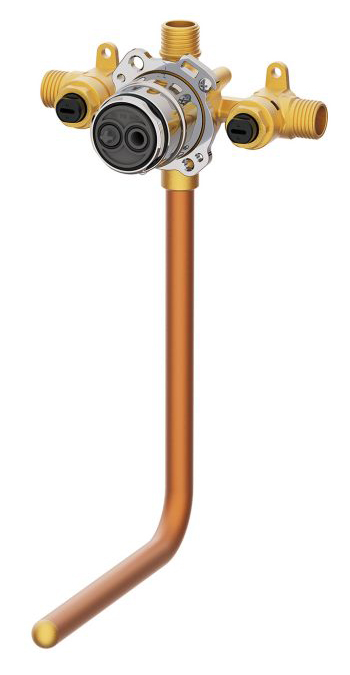

  • Shower Valves with Stub-Out.

THE OVERVIEW:

  • Engineered based on the Gerber Treysta Tub & Shower Valve platform

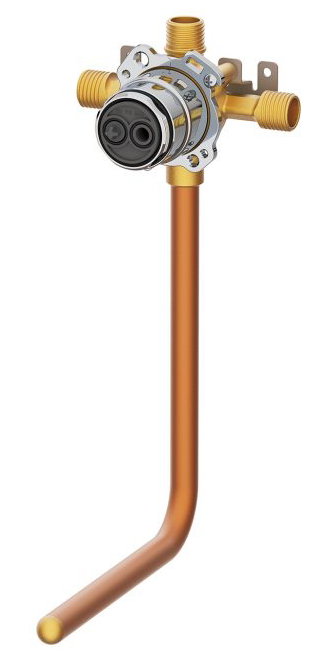

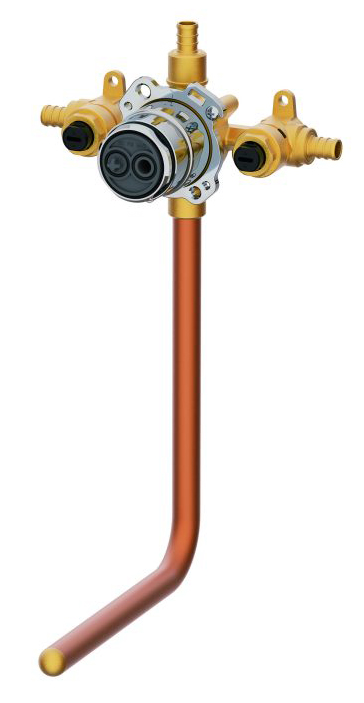

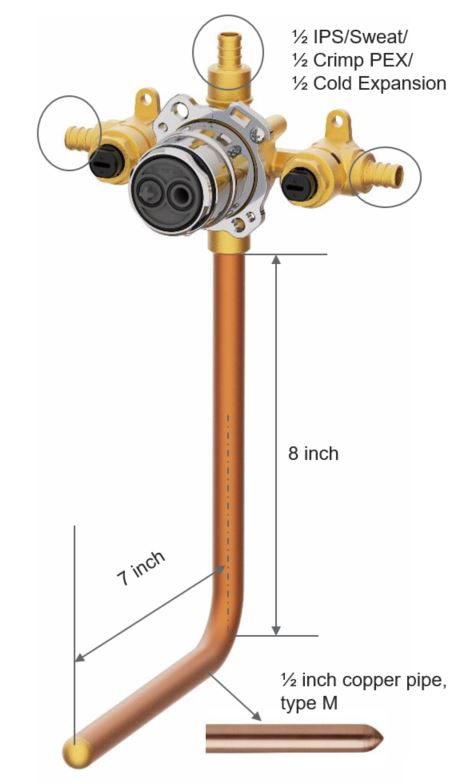

  • NEW Includes 8” x 7” x 1/2” Type M Copper Tube Stub-Out for Tub Outlet
  • NEW Shower Outlet Connection Is the Same As the Hot and Cold Inlets
  • Models included options with and without stops, as well as IPS/Sweat, Crimp PEX and Cold Expansion PEX fittings

THE BENEFITS:

  • Eliminates the need to carry different tools and supplies on the job
  • Simplifies the installation, therefore fewer errors & more efficient
  • Potential lower labor costs–no soldering expertise required
  • Reduces the complexity, risk, & cost–soldering is a fire hazard & requires additional safety measures

For more information about the Treysta valves, visit Gerber website.
