Gerber TREYSTA™ Valve System - How to identify old ceramic cartridge vs. new Treysta ceramic cartridge?

Treysta ceramic cartridge is a smart one-cartridge-fits-all design cartridge that accommodates to all different available valve bodies within the Gerber Treysta valve system.

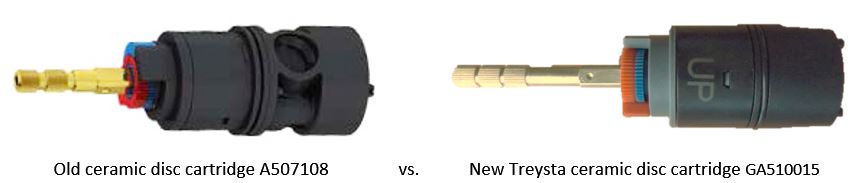

1. Both cartridges are in black however the old ceramic disc cartridge uses a black cap but the new Treysta ceramic disc cartridge features a gray cap for quick and easy visual identification, even when installed in the valve body.

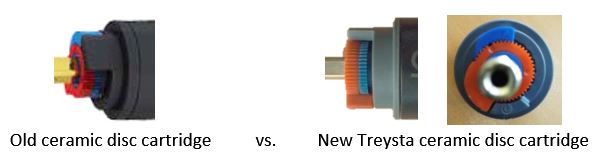

2. Both cartridges use the same temperature limiting device.

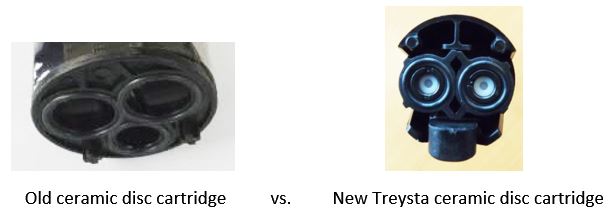

3. Bottom end of cartridge comparison

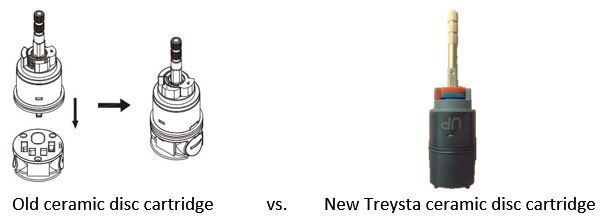

4. The old ceramic disc cartridge is a 2 pieces cartridge vs. the new Treysta ceramic disc cartridge is a single-piece cartridge.

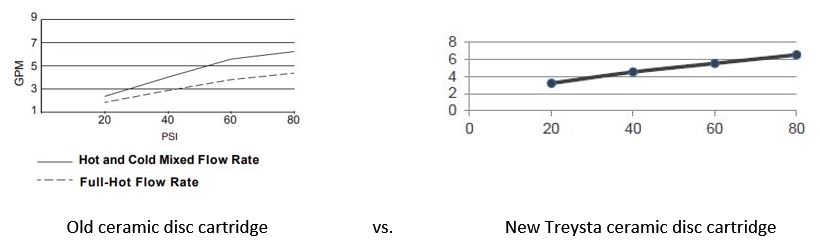

5. Flow rate


DO NOT install the new Treysta cartridge with an old rough-in valve body. The new Treysta cartridge IS NOT compatible with the old rough-in valve and an old cartridge IS NOT compatible with the new Treysta valve bodies.

 For Frequently Asked Questions, see the article on "Gerber TREYSTA™ Valve System - Frequently Asked Questions (FAQs)"
