Spout Removal for Gerber D401144, D401544, D404244 and D401542

G Admin
Updated

Gerber Kitchen Faucet with Side Sprayer D401144, D401544, D404244 and D401542 Spout Removal to Replace of Spray Diverter with Vacuum Breaker

Some of the Danze Sirius and Como Kitchen Faucets with side sprayer have a spray diverter with a vacuum breaker located within the faucet body and require removal of the spout assembly to be able to replace.


To remove the spout assembly, the customer will need to uninstall the 2 screws from the bottom of the faucet body.
  1. Uninstall the faucet from the sink.

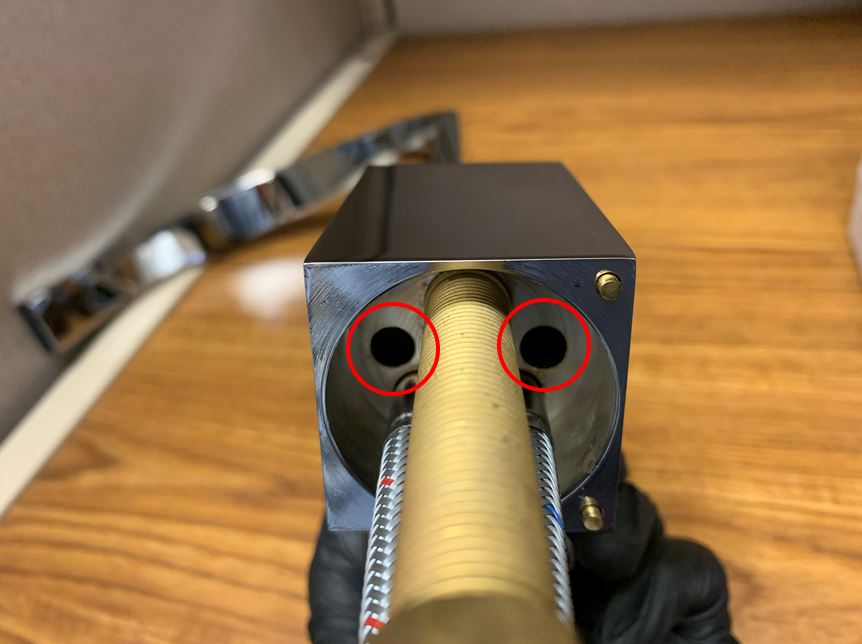

  2. Then, look from the bottom of the faucet body to locate the 2 screws.
  3. Untighten screws with a Philips-head screwdriver.
  4. Remove the spout from the faucet body to reach the spray diverter
NOTE TO AGENT: In case the customer lost the 2 little screws, the screw part number is A008500.
