Lift Rod Replacement and Installation for Tribune Single-Handle and Two-Handle Lavatory Faucet and Parma Single-Handle Lavatory Faucet

Below Lift Rod Replacement and Installation is intended for:

D225070 – Tribune Single Handle Faucet: Chrome, Brushed Nickel, Satin Black finishes
D307070 – Tribune 4” Centerset Faucet: Chrome, Brushed Nickel, Satin Black finishes
D304170 – Tribune Widespread Faucet: Chrome, Brushed Nickel, Satin Black finishes
D225258 and D225458 – Parma Single Handle Faucets: Chrome, Brushed Nickel, Satin Black, Brushed Bronze finishes



The NEW vertical lift rod with finish match plug included allows for drain-type flexibility when needed. It includes a washer to protect the faucet's body surface from scratching during operation. It is a two-part construction lift rod, allowing it to easily connect to Gerber standard pop-up drains, and it is preinstalled at the factory with the above-mentioned faucet SKUs.

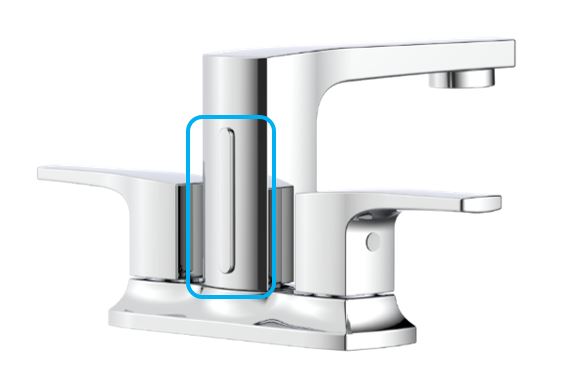

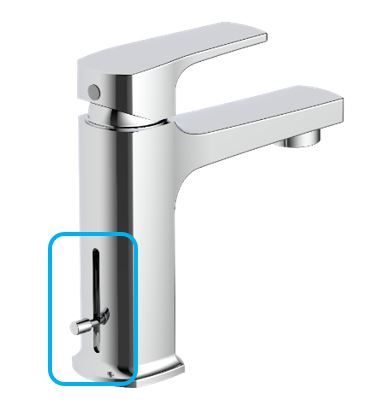

Tribune Single Lavatory Faucet with Lift Rod Tribune 2 Handle Centerset Lavatory Faucet with lift rod hole finish matching plug



To replace the lift rod components, or to remove the lift rod for replacing the drain kit with a touch down drain or other types of drain, simply hold the lift rod knob in place and unscrew the threaded rod. Blue Loctite tape is applied at the factory to keep the two pieces together, but it is not a permanent seal and is intended to be loosened as needed.

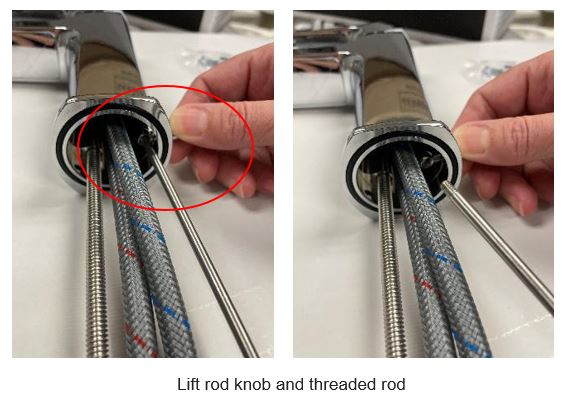

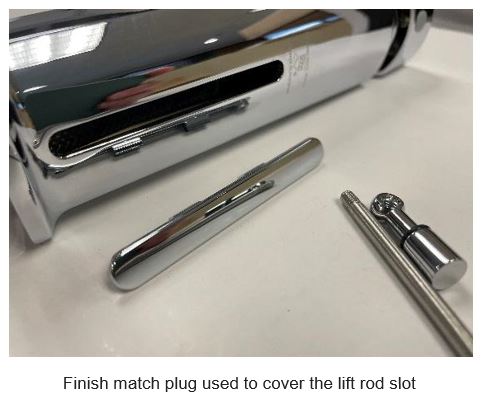

Lift rod knob and threaded rod Finish match plug used to cover the lift rod slot

To learn more on the Tribune, Parma or other lavatory faucet collection offerings, visit our Gerber website.

Visit here to see Gerber's other lavatory drain offering.
